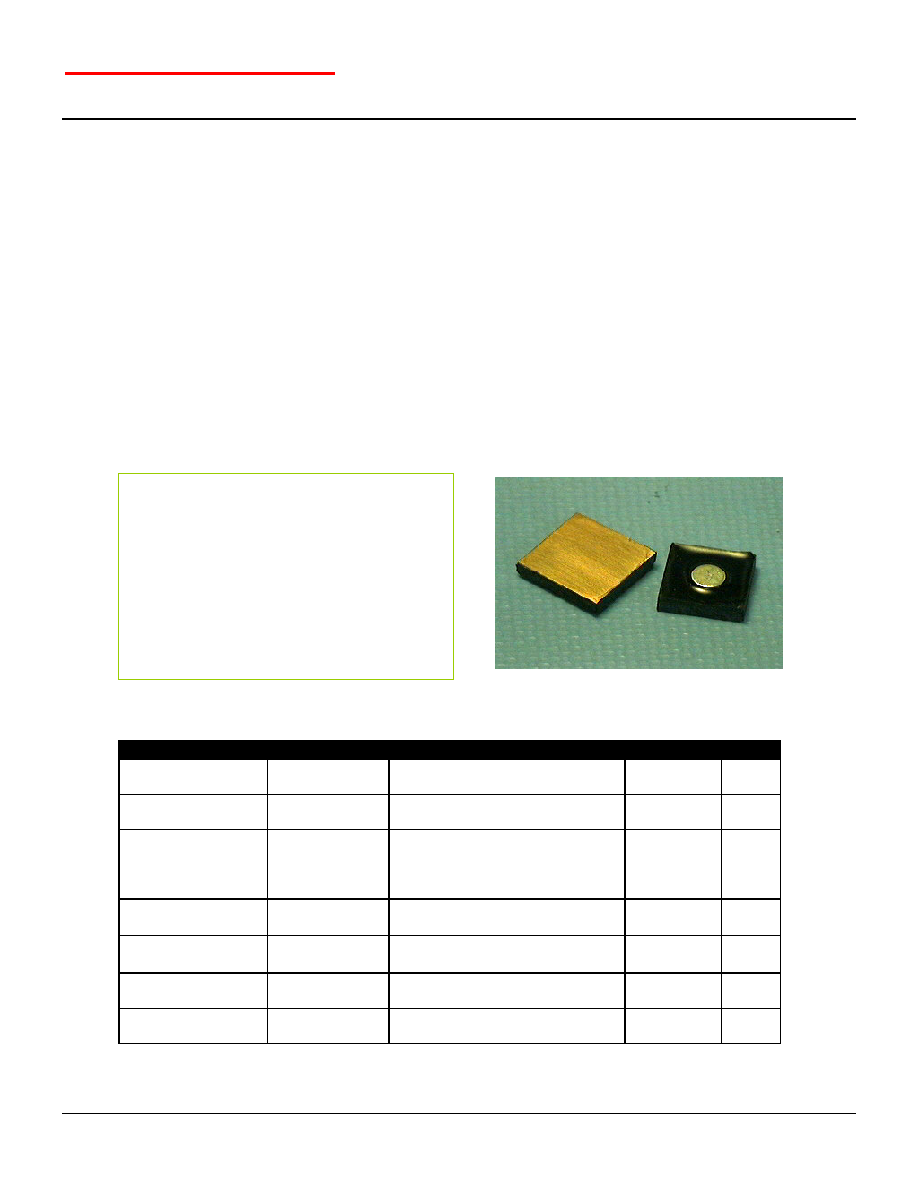

62SPB030
62SPB030A
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 461, REV. A
Power Surface Mount Schottky Rectifier
(30V, 60Amp)
Description:
This plastic power surface mount Schottky rectifier is designed for ultra low forward voltage drop
and ultra low reverse leakage applications such as switching power supplies, converters, reverse
battery protection, redundant power subsystems and many other high current AC/DC power
supplies.
Important Features:
Maximum Ratings:
Characteristics
Symbol
Condition
Max.
Units
Peak Inverse
Voltage
VRWM
-
30
V
Max. Average
Forward Current
IF(AV)
50% duty cycle, rectangular
wave form
60
A
Max. Peak One
Cycle Non-
Repetitive Surge
Current
IFSM
8.3 ms, Sine pulse
1150
A
Non-Repetitive
Avalanche Energy
EAS
TJ = 25
C, I
AS = 8.0 A,
L = 1.7 mH
54
mJ
Repetitive
Avalanche Current
IAR
IAS decay linearly to 0 in 1
ms
limited by T
J max VA=1.5VR
8.0
A
Max. Junction
Temperature
TJ
-
-65 to +150
C
Max. Storage
Temperature
Tstg
-
-65 to +150
C
Formerly
SPD114511
SPD114511A
150C T
J operation
Very low forward voltage drop
Low reverse leakage current
High surge capacities
Low power loss, high efficiency
Guaranteed reverse avalanche capability
High frequency operation
Low profile surface mount package
