5SLX 12M5200
ABB Switzerland Ltd, Semiconductors reserves the right to change specifications without notice.
ABB Switzerland Ltd
Doc. No. 5SYA1657-00 July 05
Semiconductors
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Telephone +41 (0)58 586 1419
Fax
+41 (0)58 586 1306
Email
Internet
Mechanical properties
Parameter
Unit
Overall die L x W
14.3 x 14.3
mm
exposed
front metal
L x W
9.0 x 9.0
mm
Dimensions
thickness
560
± 15
m
front (A)
AlSi1 / Al
4 + 8
m
Metallization 3)
back (K)
Al / Ti / Ni / Ag
1.2
m
3) For assembly instructions refer to: IGBT and Diode chips from ABB Switzerland Ltd, Semiconductors, Doc. No. 5SYA 2033.

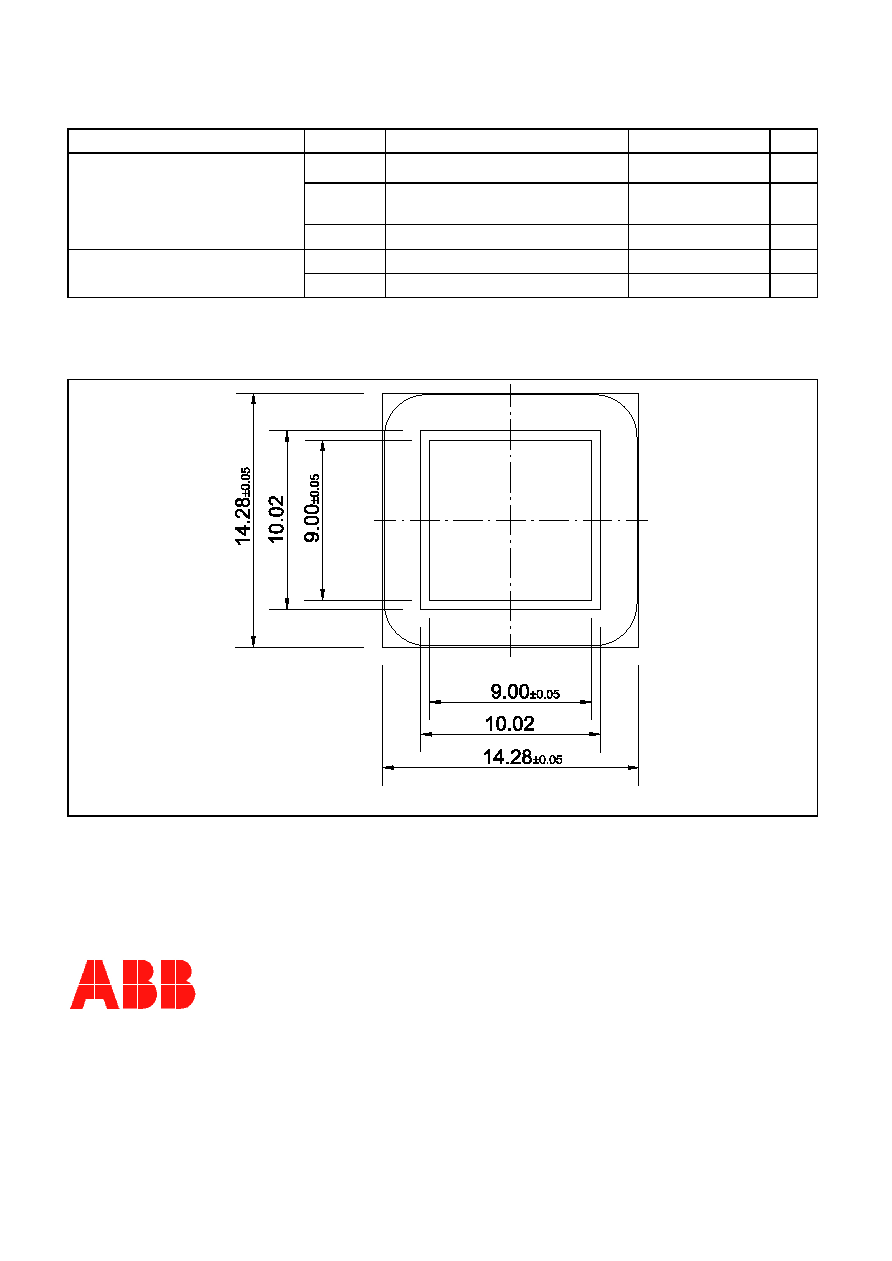

Outline Drawing
Anode
Note : All dimensions are shown in mm
This product has been designed and qualified for Industrial Level.
