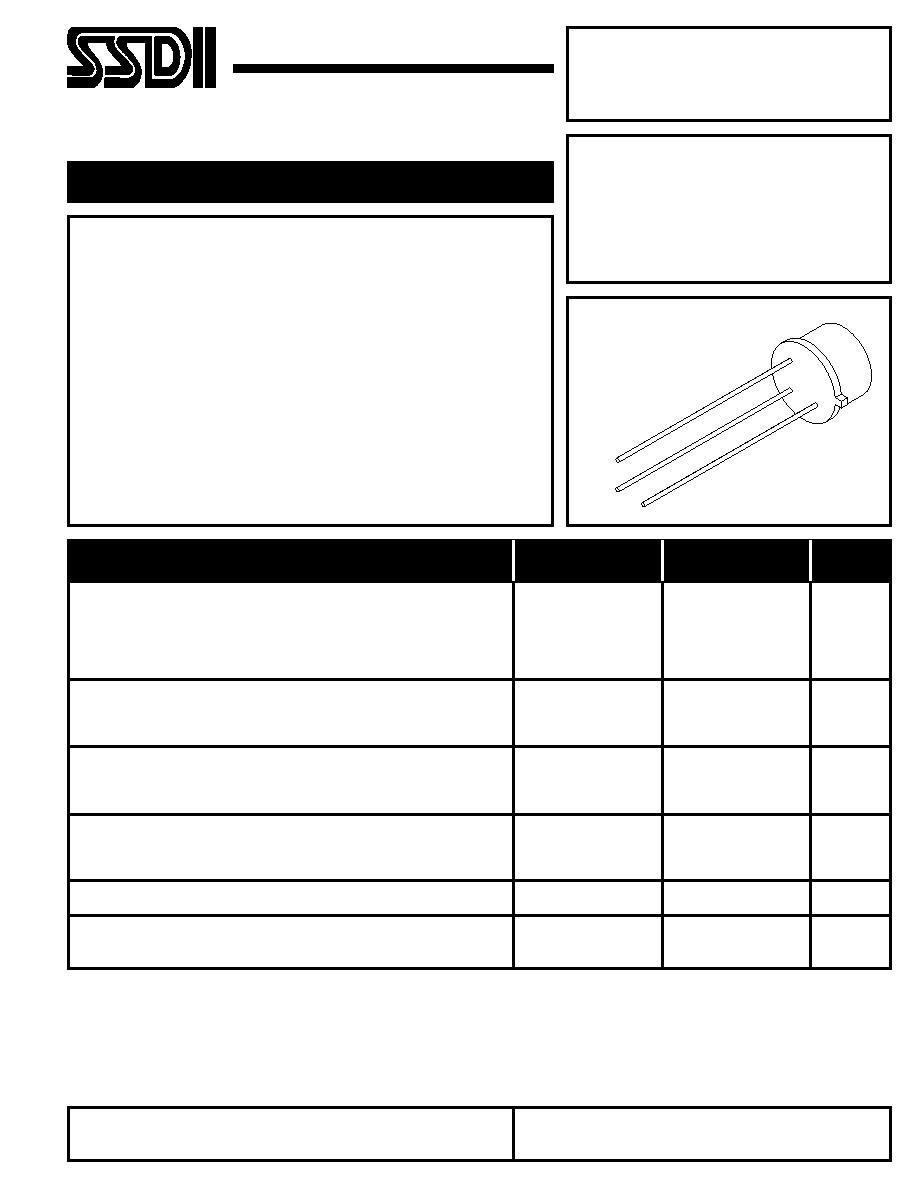

PRELIMINARY
Designer's Data Sheet
SOLID STATE DEVICES, INC.
14005 Stage Road * Santa Fe Springs, Ca 90670
Phone: (562) 404-4474 * Fax: (562) 404-1773
FEATURES:
Optimized for 12V and 15V auxiliary output power supplies. The
EPION series has been designed to provide low forward voltage
drops and small delta shifts in reverse recovery time at high
temperature minimizing switching loses.
Radiation Tolerant
Ultra Fast Recovery Time
Low Forward Voltage
Low Reverse Leakage
Hermetically Sealed Package
High Reverse Blocking Voltage
175oC Operating TJ
TO-5 (Low Profile)
NOTE: All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
RC0007A
DATA SHEET #:
3 AMPS
50-150 VOLTS
EPION
HIGH SPEED
RECTIFIER
Maximum Ratings
Volts
SYMBOL
UNITS
VALUE
Peak Repetitive Reverse and
DC Blocking Voltage
5R1/5
thru
15R1/5
5R
7R
10R
12R
15R
3
Amps
Io
50
70
100
125
150
VRM(rep)
VR
Half Wave Rectified Forward Current. Averaged Over
Full Cycle
(Resistive load, 60Hz, Sine Wave, TC = 55
oC)
4
Amps
IFM(rep)
Peak Repetitive Forward Current
(TC = 55
oC, 8.3 ms Pulse, Allow Junction to Reach Equilib-
rium Between Pulses)
Peak Surge Current
(TC= 55
oC, Superimposed on Rated Current at Rated
Voltage, 8.3 ms Pulse)
oC
-65 TO +175
TJ & Tstg
IFM(surge)
12
Amps
Maximum Thermal Resistance
Junction to Case
R2JC
50
oC/W
Operating and Storage Temperature
