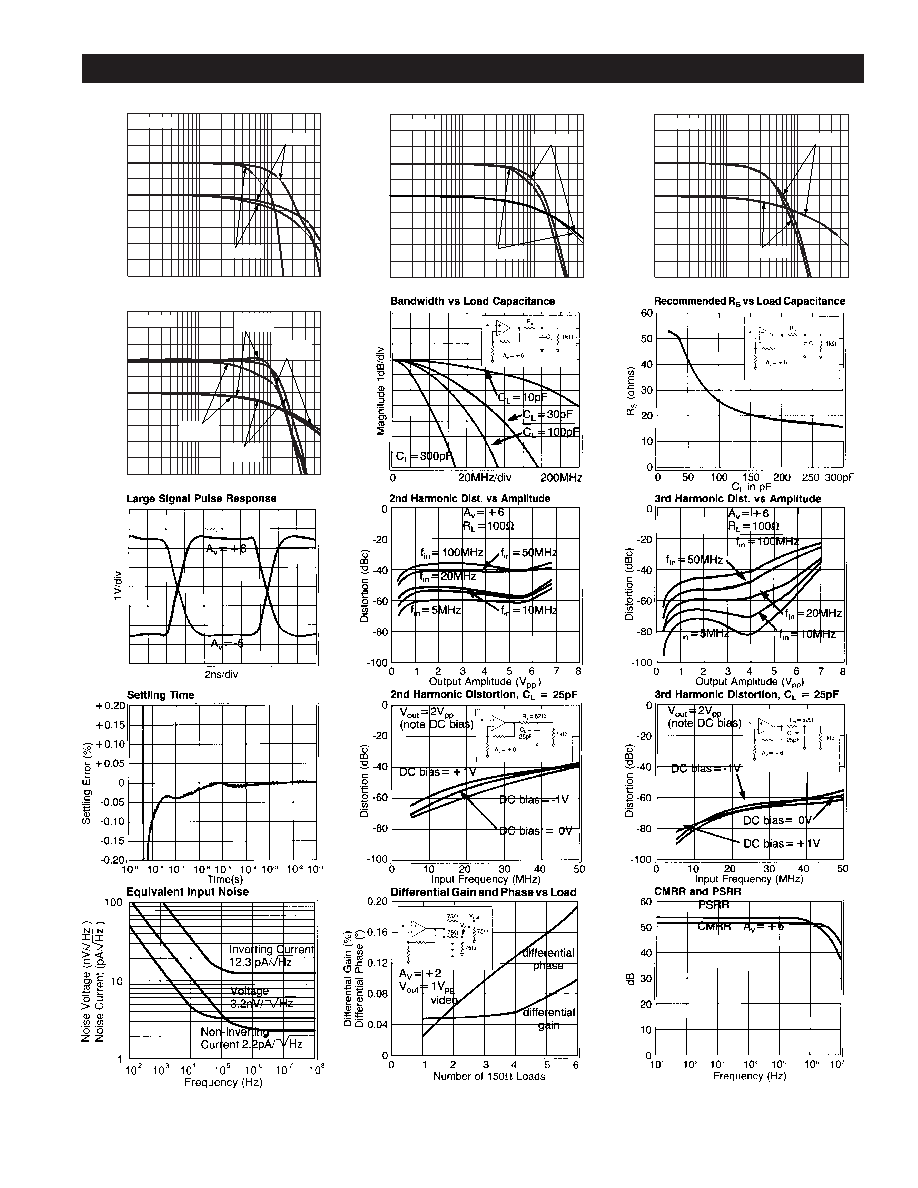

CLC404 Typical Performance Characteristics (TA = 25°,Av = +6,VCC = ±5V,RL = 100,Rf = 500;unless specified)
Frequency Response, Av = +2v/v
Magnitude
(1dB/div)
()
1
10
100
Phase
(deg)
-180
-450
-270
-360
-90
0
Rf = 686
Vout = 5Vpp
Vout = 2Vpp
Frequency Response, Av = +6v/v
Magnitude
(1dB/div)
1
10
100
Phase
(deg)
-180
-450
-270
-360
-90
0
Rf = 499
Vout = 5Vpp
Vout = 2Vpp
Frequency (MHz)
Frequency Response, Av = +20v/v
Magnitude
(1dB/div)
1
10
100
Phase
(deg)
-180
-450
-270
-360
-90
0
Rf = 301
Vout = 5Vpp
Vout = 2Vpp
Frequency (MHz)
Inverting Frequency Response
Magnitude
(1dB/div)
1
10
100
Phase
(deg)
-180
-450
-270
-360
-90
0
Vout = 2Vpp
Av = -2
Rf = 698
Av = -1
Rf = 698
Av = -20
Rf = 301
Av = -6
Rf = 499
Frequency (MHz)
3
