www.ti.com
SLUS951A – NOVEMBER 2009 – REVISED JULY 2010
OPTOCOUPLER APPLICATION
The optocoupler application shown in Figure 2 takes advantage of the accessible pins REF and ISET. The ISET
pin has a 33-
resistor to ground that protects the optocoupler by limiting the current to about 16 mA. This also
lowers the transconductance to approximately 19 mS. The ability to adjust the transconducance gives the
designer further control of the loop gain. The REF pin is available to satisfy any high precision voltage
requirements.

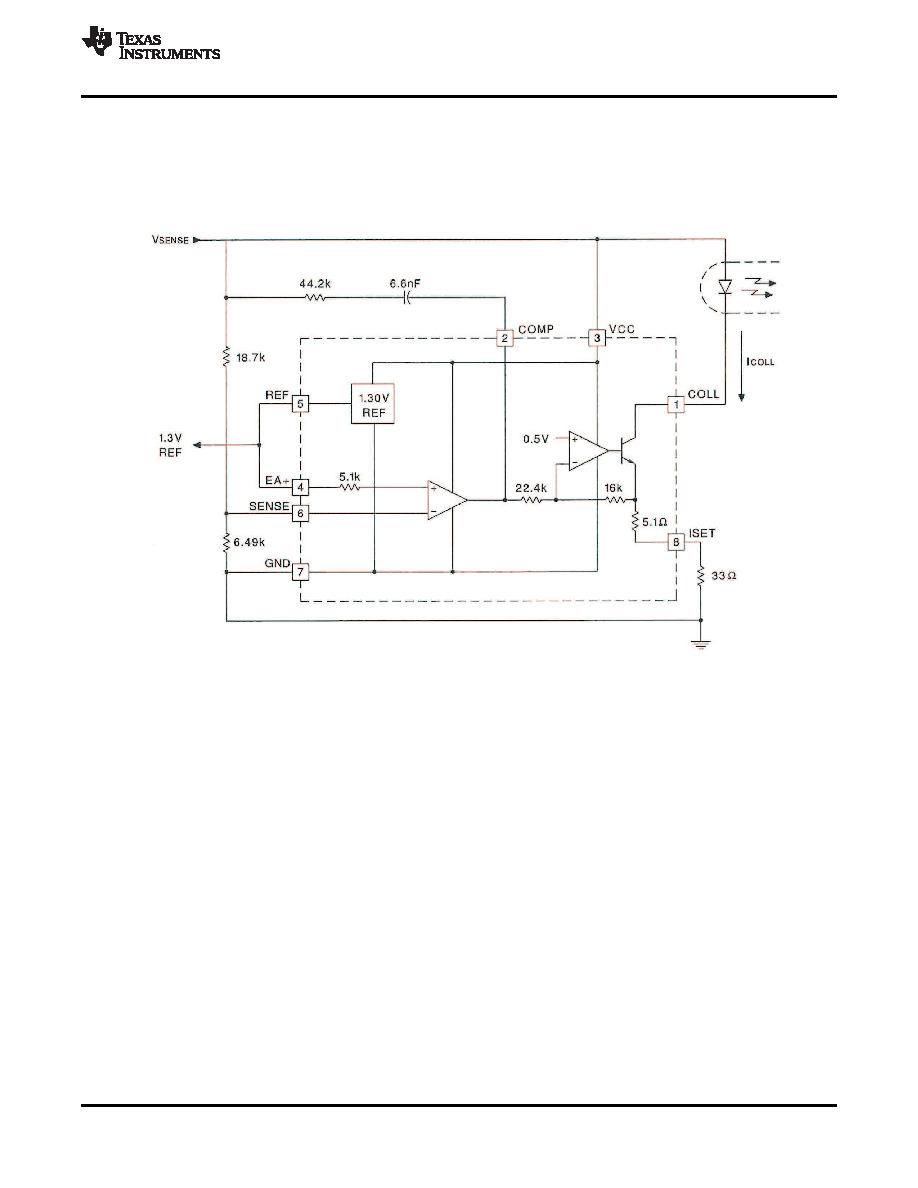

Figure 2. 5-V Optocoupler Application
Copyright 2009–2010, Texas Instruments Incorporated
5
Product Folder Link(s): UC19432-SP
