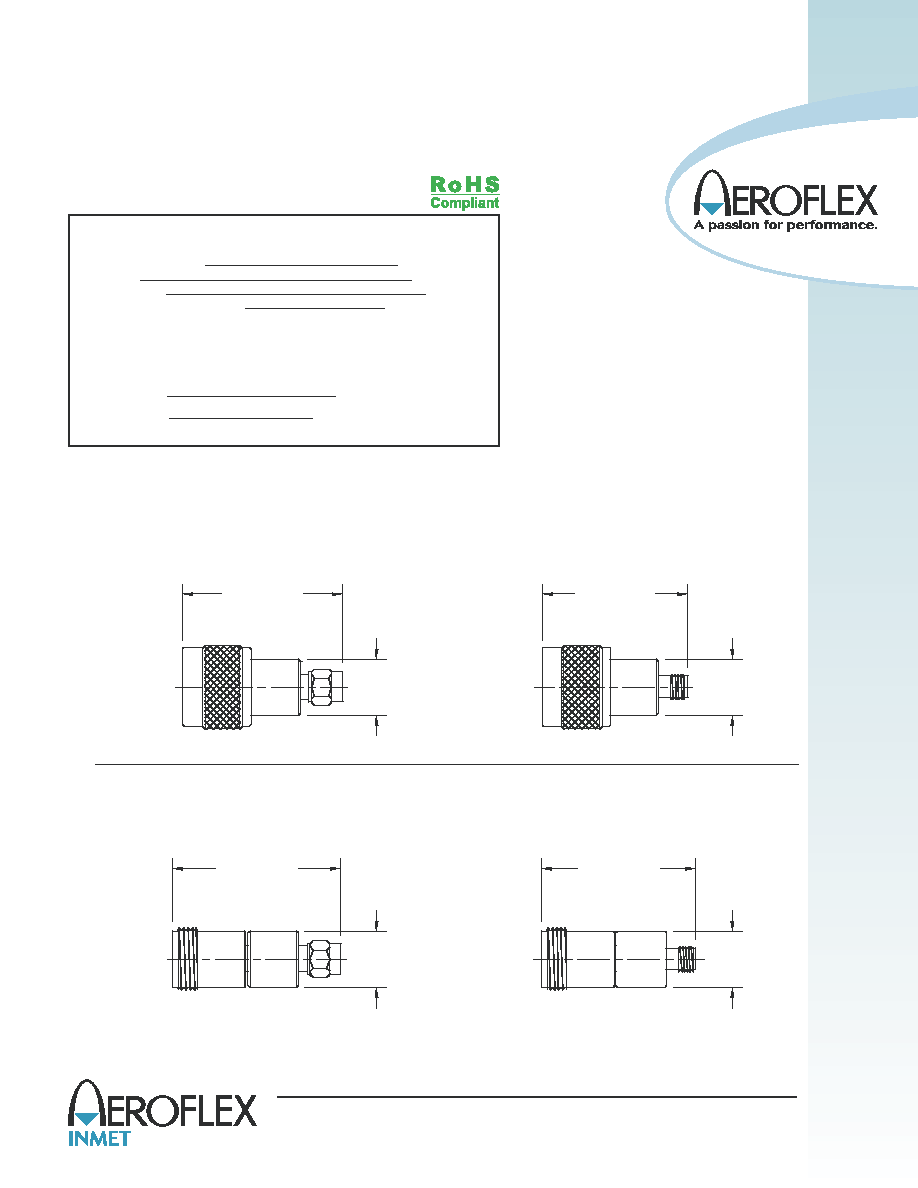

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
5006: REV A
SPECIFICATIONS:
Models:
SPECIFICATIONS:
Models: 5006, 5007, 5008, 5009
ADAPTERS, BETWEEN-SERIES
Type N / SMA, DC - 18 GHz
Mechanical:
Electrical:
Mates with MIL-STD-348
Gold Plated Beryllium Copper
VSWR
Operating Temp. Range
Connectors
Conductors
Impedance
Frequency Range
1.25:1 Max.
Passivated Stainless Steel
50 Ohms
-65°C to +125°C
DC - 18 GHz
1.44 ±.05
[36.6 ±1.3]
1.58 ±.06
[40.1 ±1.5]
1.66 ±.05
[42.2 ±1.3]
Model Number:
5007
Type N Female / SMA Male
.56
[14.2]
.56
[14.2]
5008
Type N Female / SMA Female
Model Number:
.56
[14.2]
1.53 ±.05
[38.9 ±1.3]
.56
[14.2]
Type N Male / SMA Male
Model Number:
5006
5009
Type N Male / SMA Female
Model Number:
Aeroflex / Inmet, Inc.
300 Dino Drive, Ann Arbor, MI 48103 U.S.A.
888-244-6638 or 734-426-5553 FAX: 734-426-5557
www.aeroflex-inmet.com inmetsales@aeroflex.com
