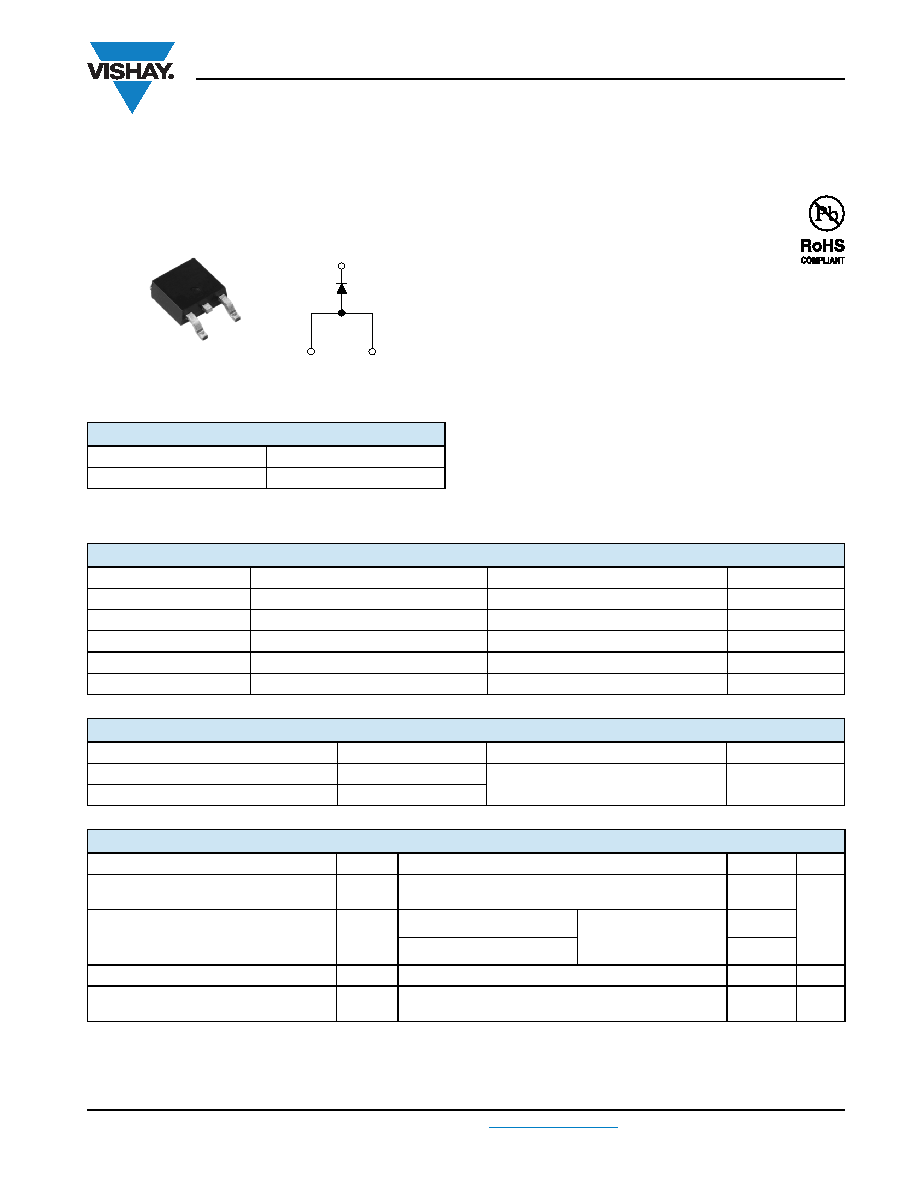

Document Number: 94197
For technical questions, contact: diodestech@vishay.com
www.vishay.com
Revision: 08-Jul-09
1
Schottky Rectifier, 3.5 A
30WQ03FNPbF
Vishay High Power Products
FEATURES
Popular D-PAK outline
Small foot print, surface mountable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Compliant to RoHS directive 2002/95/EC
AEC-Q101 qualified
DESCRIPTION
The 30WQ03FNPbF surface mount Schottky rectifier has
been designed for applications requiring low forward drop
and small foot prints on PC board. Typical applications are in
disk
drives,
switching
power
supplies,
converters,
freewheeling diodes, battery charging, and reverse battery
protection.
PRODUCT SUMMARY
IF(AV)
3.5 A
VR
30 V
D-PAK
Anode
1
3
Base
cathode
4, 2
Anode
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
VALUES
UNITS
IF(AV)
Rectangular waveform
3.5
A
VRRM
30
V
IFSM
tp = 5 s sine
535
A
VF
3 Apk, TJ = 125 °C
0.35
V
TJ
Range
- 40 to 150
°C
VOLTAGE RATINGS
PARAMETER
SYMBOL
30WQ03FNPbF
UNITS
Maximum DC reverse voltage
VR
30
V
Maximum working peak reverse voltage
VRWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
TEST CONDITIONS
VALUES
UNITS
Maximum average forward current
See fig. 5
IF(AV)
50 % duty cycle at TC = 134 °C, rectangular waveform
3.5
A
Maximum peak one cycle non-repetitive
surge current
See fig. 7
IFSM
5 s sine or 3 s rect. pulse
Following any rated load
condition and with rated
VRRM applied
535
10 ms sine or 6 ms rect. pulse
90
Non-repetitive avalanche energy
EAS
TJ = 25 °C, IAS = 2 A, L = 4 mH
8
mJ
Repetitive avalanche current
IAR
Current decaying linearly to zero in 1 s
Frequency limited by TJ maximum VA = 1.5 x VR typical
1.0
A
