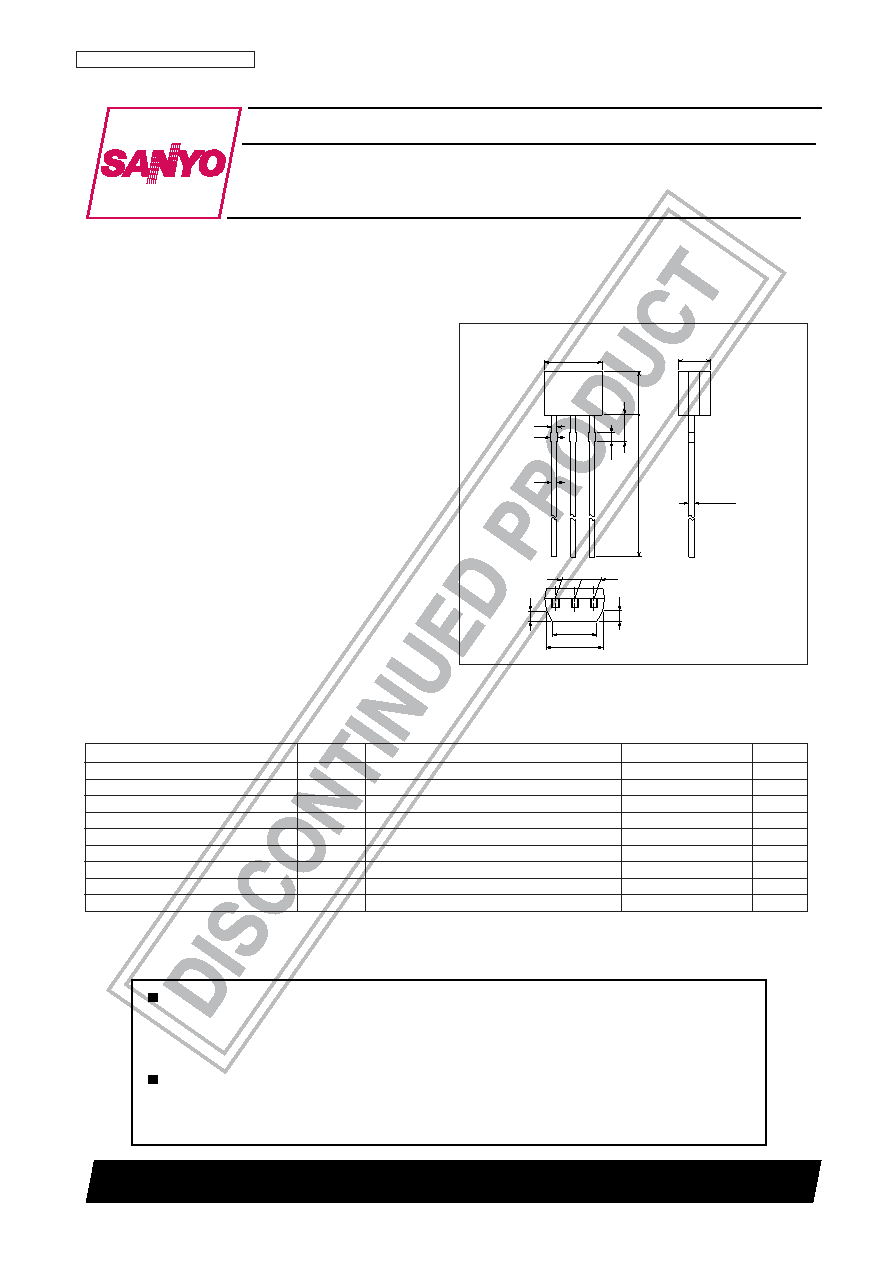

2SC5607
No.6403-1/4
DC / DC Converter Applications
Applications
Relay drivers, lamp drivers, motor drivers, strobes.
Features
Adoption of MBIT processes.
Large current capacitance.
Low collector-to-emitter saturation voltage.
High-speed switching.
High allowable power dissipation.
Specifications
Absolute Maximum Ratings at Ta=25°C
Parameter
Symbol
Conditions
Ratings
Unit
Collector-to-Base Voltage
VCBO
15
V
Collector-to-Emitter Voltage
VCEO
10
V
Emitter-to-Base Voltage
VEBO
7V
Collector Current
IC
5A
Collector Current (Pulse)
ICP
9A
Base Current
IB
1A
Collector Dissipation
PC
0.55
W
Junction Temperature
Tj
150
°C
Storage Temperature
Tstg
--55 to +150
°C
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Ordering number : ENN6403A
2SC5607
Package Dimensions
unit : mm
2033A
[2SC5607]
62502 TS IM TA-3603 / 21000 TS (KOTO) TA-2526
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
NPN Epitaxial Planar Silicon Transistor
1 : Emitter
2 : Collector
3 : Base
SANYO : SPA
4.0
0.4
0.5
0.4
0.6
15.0
3.0
1.8
12
3
2.2
0.4
1.3
3.0
3.8nom
0.7
