Board Mountable
DC-DC Converters
IMS 15 Series
REV. JUN 09, 2004
10/14

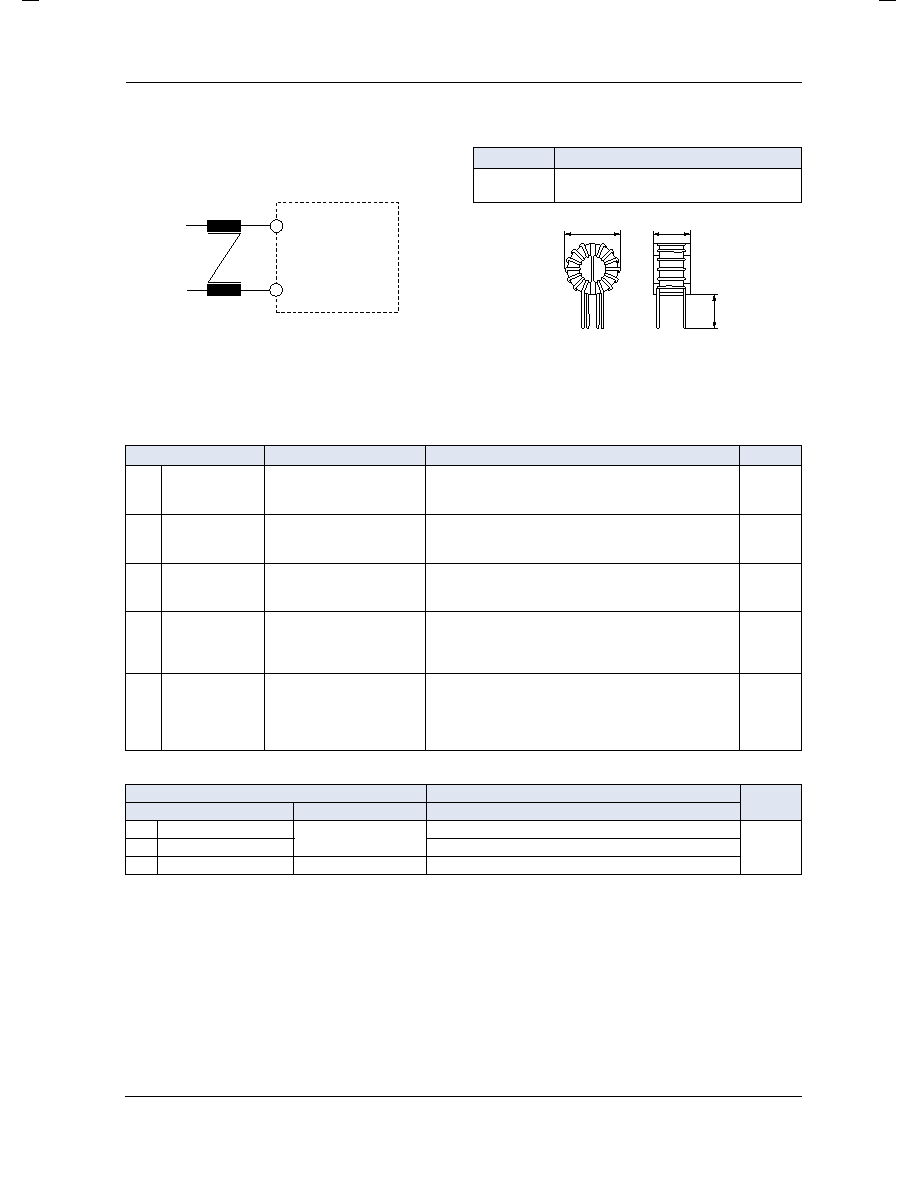

Immunity to Environmental Conditions
Table 10: Mechanical stress
Test method
Standard
Test conditions
Status
Ca
Damp heat
IEC/DIN IEC 60068-2-3
Temperature:
40 ±2
°C
Unit not
steady state
MIL-STD-810D section 507.2
Relative humidity:
93 +2/-3 %
operating
Duration:
56 days
Ea
Shock
IEC/EN/DIN EN 60068-2-27
Acceleration amplitude:
50 gn = 490 m/s2
Unit
(half-sinusoidal)
MIL-STD-810D section 516.3
Bump duration:
11 ms
operating
Number of bumps:
18 (3 each direction)
Eb
Bump
IEC/EN/DIN EN 60068-2-29
Acceleration amplitude:
25 gn = 245 m/s2
Unit
(half-sinusoidal)
MIL-STD-810D section 516.3
Bump duration:
11 ms
operating
Number of bumps:
6000 (1000 each direction)
Fc
Vibration
IEC/EN/DIN EN 60068-2-6
Acceleration amplitude:
0.35 mm (10...60 Hz)
Unit
(sinusoidal)
MIL-STD-810D section 514.3
5 gn = 49 m/s2 (60...2000 Hz)
operating
Frequency (1 Oct/min):
10...2000 Hz
Test duration:
7.5 h (2.5 h each axis)
Kb
Salt mist, cyclic
IEC/EN/DIN IEC 60068-2-52
Concentration:
5% (30
°C)
Unit not
(sodium chloride
Duration:
2 h per cycle
operating
NaCl solution)
Storage:
40
°C, 93% rel. humidity
Storage duration:
22 h per cycle
Number of cycles:
3
Table 11: Temperature specifications, valid for air pressure of 800...1200 hPa (800...1200 mbar)
Temperature
Standard -9
Characteristics
Conditions
min
max
Unit
TA
Ambient temperature 1
Operational
–40
71
°C
TC
Case temperature
–40
95
TS
Storage temperature 1
Non operational
–55
100
1MIL-STD-810D section 501.2 and 502.2
CISPR 22/EN 55022, Level B Radiated
Electromagnetic
emission
requirements
according
to
EN 55022, class B (radiated emmission) can be achieved
by adding an external common mode choke. The filter com-
ponent should be placed as close as possible to the input of
the converter.
Fig. 19
Choke dimensions (Tokin SC-02-10 GS)
Vi+
Vi–
L
V+
V–
Module
07115
Fig. 18
Example for external circuitry to comply with CISPR22/EN
55022, level B, radiated
15
8.5
15
07110
Table 9: Input filter components for EN 55022, level B,
radiated.
Type
Current compensated choke
24 IMS 15
1 mH, 2A
48 IMS 15
e.g. Tokin SC-02-10GS
