elecTrical
Operating Current : 8 AMPS (18 AWG only)
Maximum Operating Voltage : 400VAC / 400VDC
Dielectric Withstanding Voltage : 1500VAC
mecHanical
Operating Temperature : -40°C to 105°C
Wire Retention : 5 lbs. minimum
maTerialS
Housings : 94 V0 rated high temperature resistant thermoplastic
Contacts : Tin over nickel plated copper alloy
STandardS and SpecificaTionS
UL 1977
Product Specification : 108-2404
Application Specification : 114-13266
Tape and Reel Packaging per EIA-481

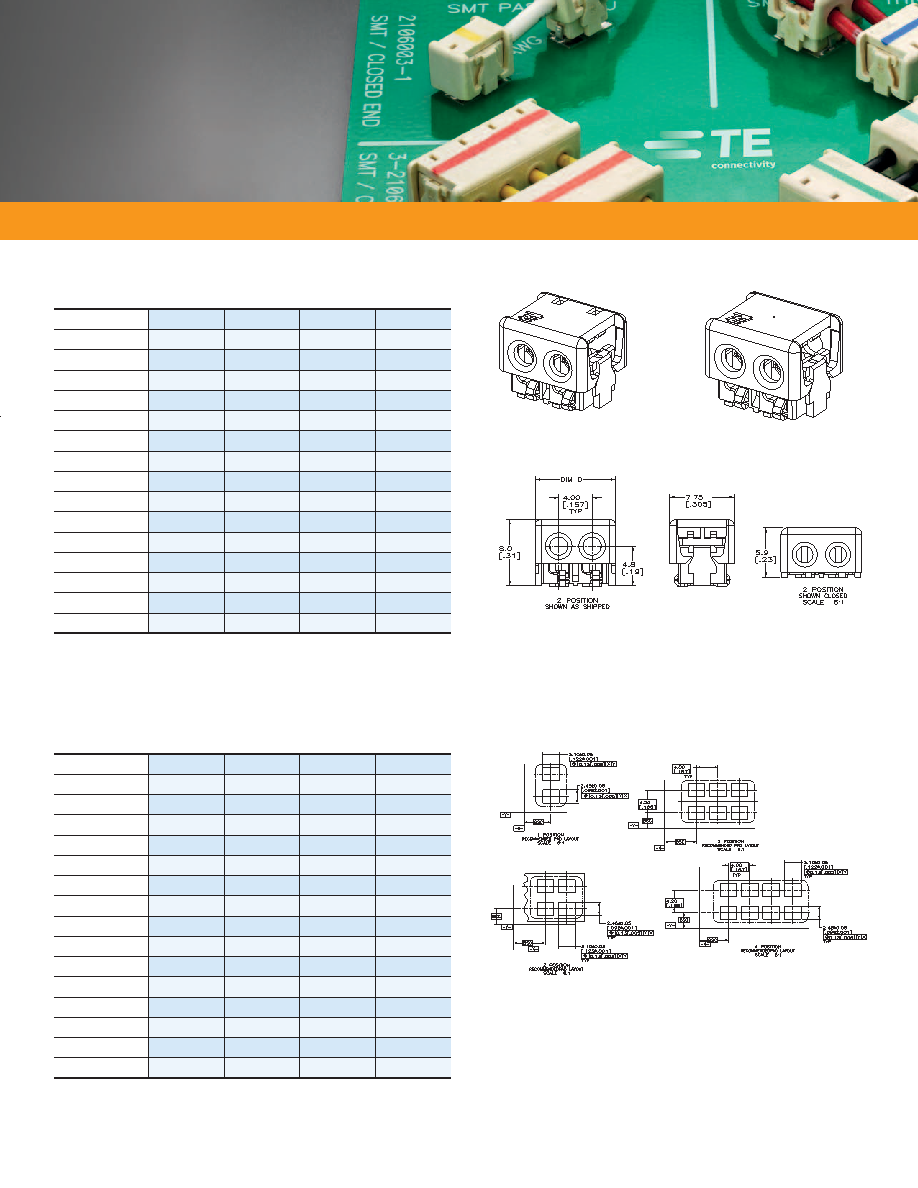

producT dimenSionS
Closed End
Product Dimensions
Recommended PCB Layout
Feed Thru
Closed End IDC SSL Connectors (SMT)
PART NUMBER
POSITION
WIRE SIZE
DIM “D”
COLOR
2106003-1
1
18 AWG
5.70 [.224]
YELLOW
2106003-2
2
18 AWG
9.70 [.382]
YELLOW
2106003-3
3
18 AWG
13.70 [.539]
YELLOW
2106003-4
4
18 AWG
17.70 [.697]
YELLOW
1-2106003-1
1
20 AWG
5.70 [.224]
BLUE
1-2106003-2
2
20 AWG
9.70 [.382]
BLUE
1-2106003-3
3
20 AWG
13.70 [.539]
BLUE
1-2106003-4
4
20 AWG
17.70 [.697]
BLUE
2-2106003-1
1
22 AWG
5.70 [.224]
GREEN
2-2106003-2
2
22 AWG
9.70 [.382]
GREEN
2-2106003-3
3
22 AWG
13.70 [.539]
GREEN
2-2106003-4
4
22 AWG
17.70 [.697]
GREEN
3-2106003-1
1
24 AWG
5.70 [.224]
RED
3-2106003-2
2
24 AWG
9.70 [.382]
RED
3-2106003-3
3
24 AWG
13.70 [.539]
RED
3-2106003-4
4
24 AWG
17.70 [.697]
RED
Feed Thru IDC SSL Connectors (SMT)
PART NUMBER
POSITION
WIRE SIZE
DIM “D”
COLOR
2106431-1
1
18 AWG
5.70 [.224]
YELLOW
2106431-2
2
18 AWG
9.70 [.382]
YELLOW
2106431-3
3
18 AWG
13.70 [.539]
YELLOW
2106431-4
4
18 AWG
17.70 [.697]
YELLOW
1-2106431-1
1
20 AWG
5.70 [.224]
BLUE
1-2106431-2
2
20 AWG
9.70 [.382]
BLUE
1-2106431-3
3
20 AWG
13.70 [.539]
BLUE
1-2106431-4
4
20 AWG
17.70 [.697]
BLUE
2-2106431-1
1
22 AWG
5.70 [.224]
GREEN
2-2106431-2
2
22 AWG
9.70 [.382]
GREEN
2-2106431-3
3
22 AWG
13.70 [.539]
GREEN
2-2106431-4
4
22 AWG
17.70 [.697]
GREEN
3-2106431-1
1
24 AWG
5.70 [.224]
RED
3-2106431-2
2
24 AWG
9.70 [.382]
RED
3-2106431-3
3
24 AWG
13.70 [.539]
RED
3-2106431-4
4
24 AWG
17.70 [.697]
RED
