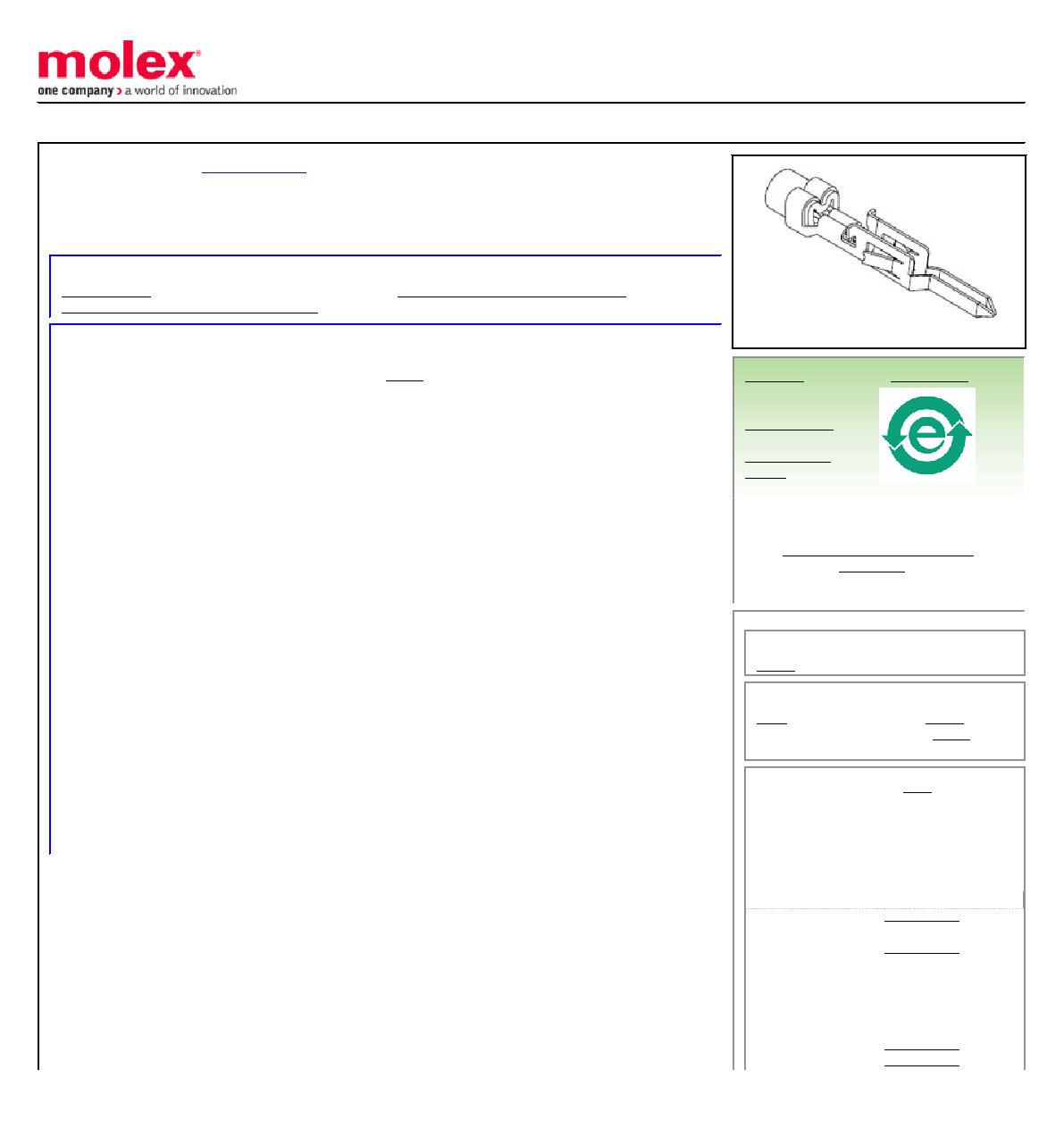

This document was generated on 11/12/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
Mini-Fit Plus HCS Crimp Terminal, 18-20 AWG, Reel, 0.76m (30") Gold (Au)
Selective Plating
Documents:
General
Product Family
Crimp Terminals
Series
Comments
Current Rating = 12.0A with 18 AWG wire or 9.0A with
20 AWG wire
Current - Maximum
12A
Current - Maximum
9A
Overview
Mini-Fit Plus HCS™
Product Name
Mini-Fit Plus HCS
Voltage - Maximum
600V
Physical
Durability (mating cycles max)
75
Gender
Male
Material - Metal
Copper
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Packaging Type
Reel
Plating min: Mating (in)
30
Plating min: Mating (m)
0.76
Plating min: Termination (in)
100
Plating min: Termination (m)
2.5
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
1.65-2.95mm (.065-.116")
Wire Size AWG
18
Wire Size AWG
20
Wire Size mm
N/A
Material Info
Reference - Drawing Numbers
Product Specification
PS-45750-001
Sales Drawing
SD-46012-001
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
46012 Series
Use With
5559 Mini-Fit Jr.(TM) Plugs, 42475 Mini-Fit
BMI(TM) Panel Mount Plugs, 30068 Mini-Fit
TPA(TM) Plugs
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
FineAdjust
Applicator
FineAdjust
Applicator for Mini-Fit
Jr., Mini-Fit HCS
Crimp Terminals,
18-24 AWG and
smaller insulation
Extraction Tool
T2 Terminator Die
