參數資料
| 型號： | 0399400204 |
| 廠商： | MOLEX INC |
| 元件分類： | 接線盒 |
| 英文描述： | 15 A, STRIP TERMINAL BLOCK, 2 ROWS, 2 DECKS |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/1頁 |
| 文件大小： | 33K |
| 代理商： | 0399400204 |

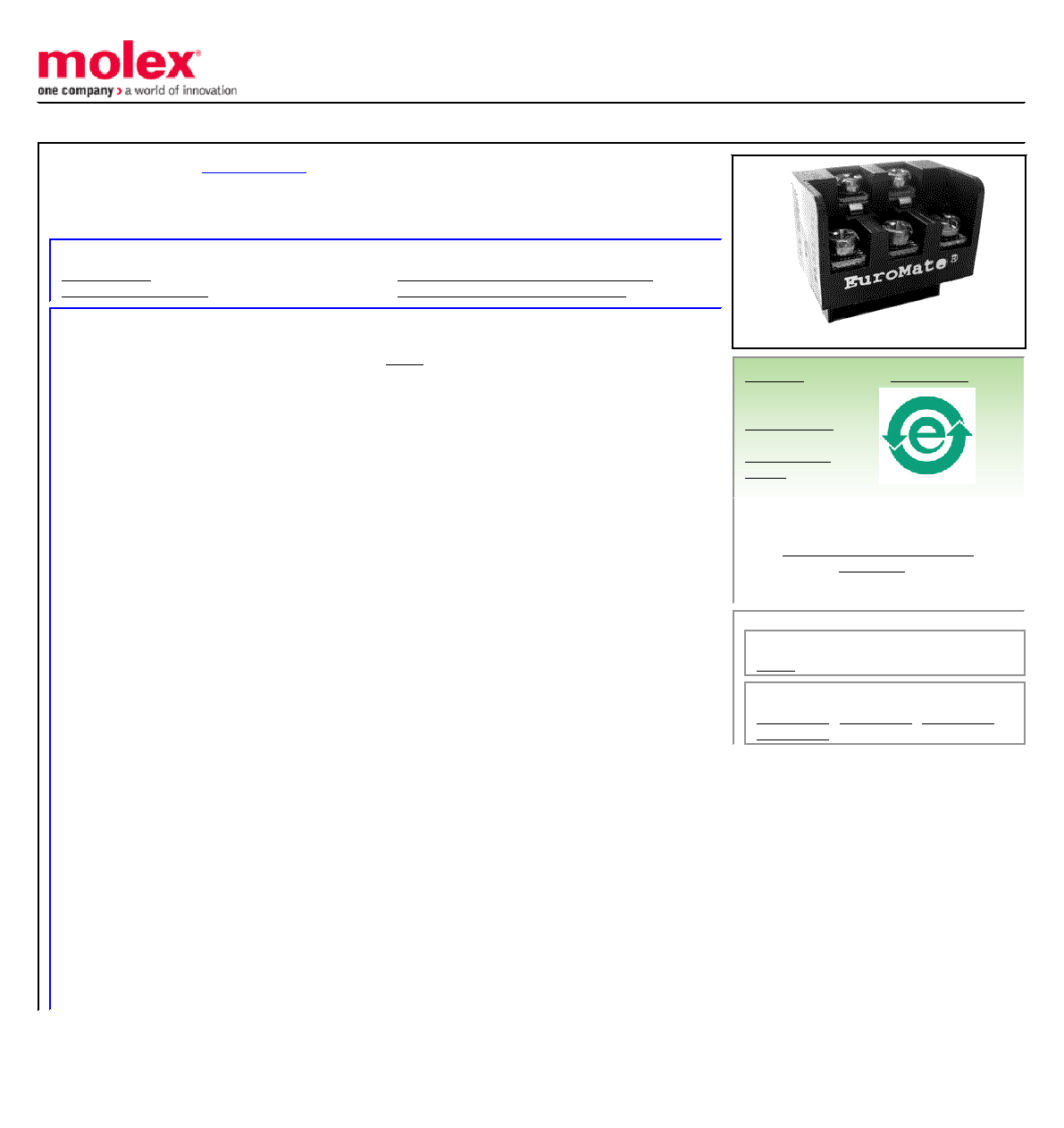

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
5.08mm (.200") Pitch Beau EuroMate Pluggable PCB Terminal Block, Dual Level,
90° Wire Entry, 4 Circuits
Documents:
General
Product Family
Terminal Blocks
Series
Application
Wire-to-Board
Comments
Gold plating available
Component Type
Plug
Product Name
EuroMatePluggable
Type
Euro Block
Physical
Circuits (Loaded)
4
Color - Resin
Black
Entry Angle
Horizontal
Flammability
94V-0
Lock to Mating Part
None
Material - Resin
Nylon
Number of Rows
2
Orientation
Vertical
Panel Mount
No
Pitch - Mating Interface (in)
0.200 In
Pitch - Mating Interface (mm)
5.08 mm
Polarized to Mating Part
Yes
Stackable
No
Temperature Range - Operating
130°C
Termination Interface: Style
Screw or Lug
Wire Size AWG
12
Wire Size AWG
14
Wire Size AWG
16
Wire Size AWG
18
Wire Size AWG
20
Wire Size AWG
22
Wire Size mm
0.50 - 2.50
Electrical
Current - Maximum
15A
UL
E48521
Voltage - Maximum
300V
Material Info
Old Part Number
940804
Reference - Drawing Numbers
Product Specification
PS-39940-001
Sales Drawing
SD-39940-004
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39940 Series
Mates With
This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
