參數資料
| 型號： | 0399200310 |
| 廠商： | MOLEX INC |
| 元件分類： | 接線盒 |
| 英文描述： | 11 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK |
| 封裝： | ROHS COMPLIANT |
| 文件頁數： | 1/2頁 |
| 文件大?。?/td> | 35K |
| 代理商： | 0399200310 |

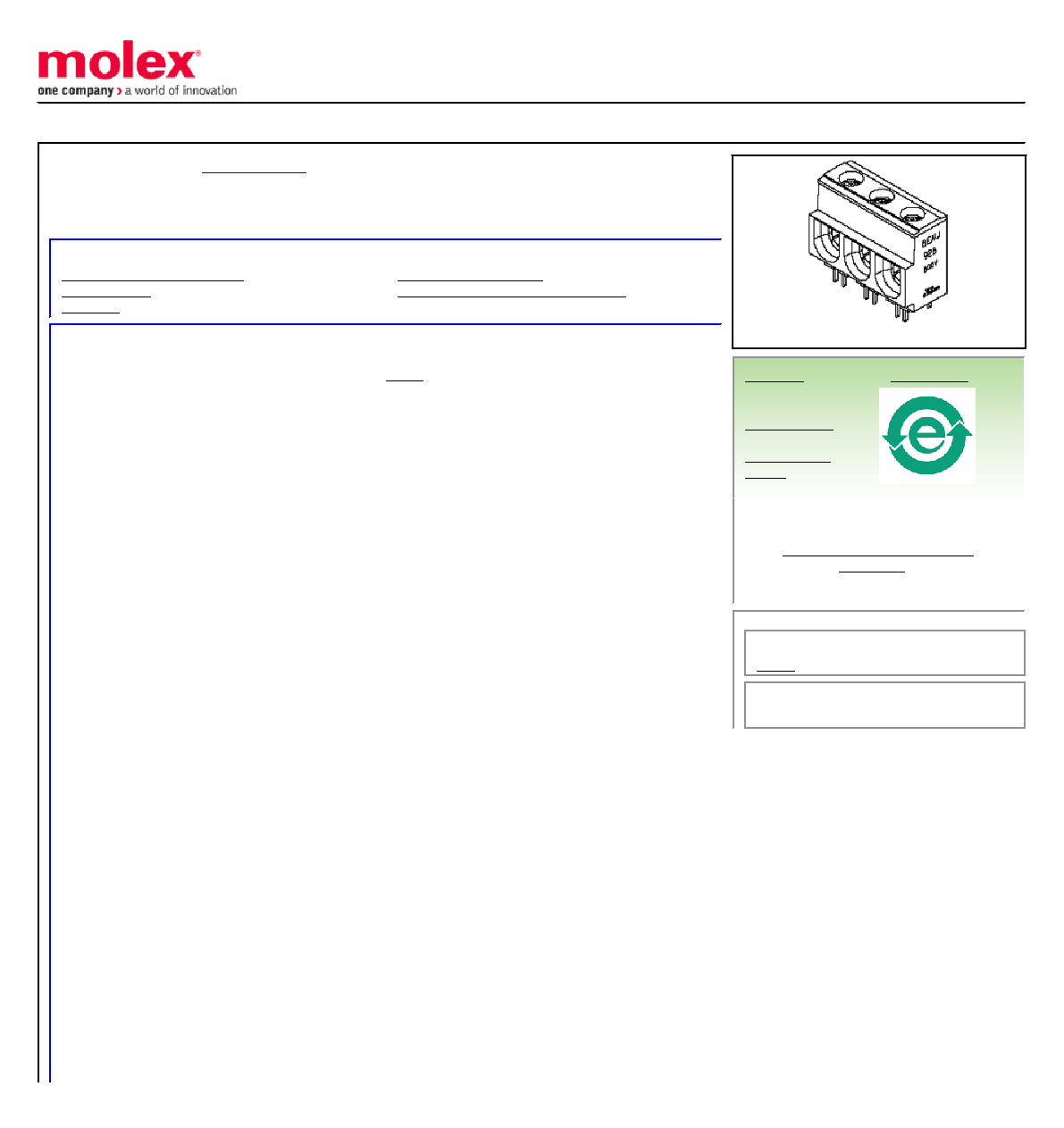

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Description:
15.00mm (.591") Beau Eurostyle, Fixed Mount PCB Terminal Block, High Voltage,
High Power 115.0A, 10 Circuits
Documents:
General
Product Family
Terminal Blocks
Series
Application
Wire-to-Board
Component Type
One Piece
Product Name
EurostyleFixed Mount
Type
Euro Block
Physical
Circuits (Loaded)
10
Color - Resin
Black
Entry Angle
Horizontal
Flammability
94V-0
Lock to Mating Part
None
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Material - Resin
Polyester
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.250 In
PC Tail Length (mm)
6.35 mm
PCB Retention
Yes
Panel Mount
No
Pitch - Mating Interface (in)
0.591 In
Pitch - Mating Interface (mm)
15.00 mm
Pitch - Term. Interface (in)
0.591 In
Pitch - Term. Interface (mm)
15.00 mm
Plating min: Mating (in)
150
Plating min: Mating (m)
3.75
Plating min: Termination (in)
150
Plating min: Termination (m)
3.75
Polarized to Mating Part
Yes
Shrouded
Fully
Stackable
No
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
130°C
Termination Interface: Style
Through Hole
Wire Size AWG
1
Wire Size AWG
2
Wire Size AWG
3
Wire Size AWG
4
Wire Size AWG
6
Wire Size AWG
8
Wire Size mm
10.0 - 35
Electrical
Series image - Reference only
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39920 Series
Mates With
N/A
