TC 601/M/DS/5 12/99
Mechanical characteristics
Rail:
DIN 35 mm stainless steel
Pair/drop wire housing screw:
Special passivated direct +
lacquered Zamac alloy
Drop wire housing body:
Transparent polycarbonate
Body:
V0 glass-fiber reinforced
polycarbonate
Insertion contacts:
Tinned phosphor bronze
(in connection module)
Ground contacts:
Cu - Zn - Ni - Ag alloy
(in connection module)
Continuity contacts:
Tinned hard brass
(in connection module)
Lower sealant:
Epoxy resin
Upper cable sealant:
Silicone fluid
Pair / drop wire bearing cover:
Polycarbonate
Plug-in module body:
V0 glass-fiber reinforced
polycarbonate
Plug-in module sealant:
Gel
“O” ring:
EPDM
Spring:
Stainless steel
Cable / drop wire membrane:
Thermoplastic rubber
* If > 20 A up to 30A is required, this is possible using a different GDT.
Specifications
Contact characteristics
Drop wire connector
Gauge range:
0.4 to 1.2 mm diameter
Jacket diameter:
5 mm maximum diameter
Pair connector
Gauge range:
0.4 to 1.2 mm diameter
Jacket diameter:
3 mm maximum diameter
Current conducting capacity
20 A, 10 A per conductor, for
10 minutes, at least, without
causing deformation of the
module*
Insulation resistance
Dry atmosphere:
>1012
Damp atmosphere (ASTM D618, procedure F):
>1012
Salt fog (ASTM B117):
>1010
Immersion in water (15 days in 3% NaCl solution):
>1010
Contact resistance
Rmaterial + Rbridge contacts + Rwire contacts:
<10 m
Increase in contact resistance
After climatic tests:
<2.5 m
After 50 reinsertions:
<2.5 m
Dielectric strength:
>3,000 Vdc for 1 minute
VX-DR
Ordering information
Dimensions
Raychem NV
Diestsesteenweg 692
3010 Kessel-Lo, Belgium
Tel.: 32-16 351 011
Fax: 32-16 351 697
www.tycoelectronics.com
Raychem
8000 Purfoy, Rd.
Fuquay-Varina, NC 27526, USA
Tel.: 1-919-557 8600
Fax: 1-919-557 8404
Tyco, Raychem and VX are trademarks of Tyco International.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, Tyco Electronics makes no
warranties as to its accuracy or completeness and disclaims any liability in connection with its use. Tyco Electronics’ obligations shall only be as set forth in Tyco Electronics’ Standard Terms and
Conditions of Sale for this product and in no case will Tyco Electronics be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of
Tyco Electronics products should make their own evaluation to determine the suitability of each such product for the specific application.
Mondragon Telecommunications
Polígono industrial Mediterráneo
C/. la Fila, parcela 6
46550 Albuixech-Valencia, Espaa
Tel.: 34-96-141 70 72
Fax: 34-96-141 74 15

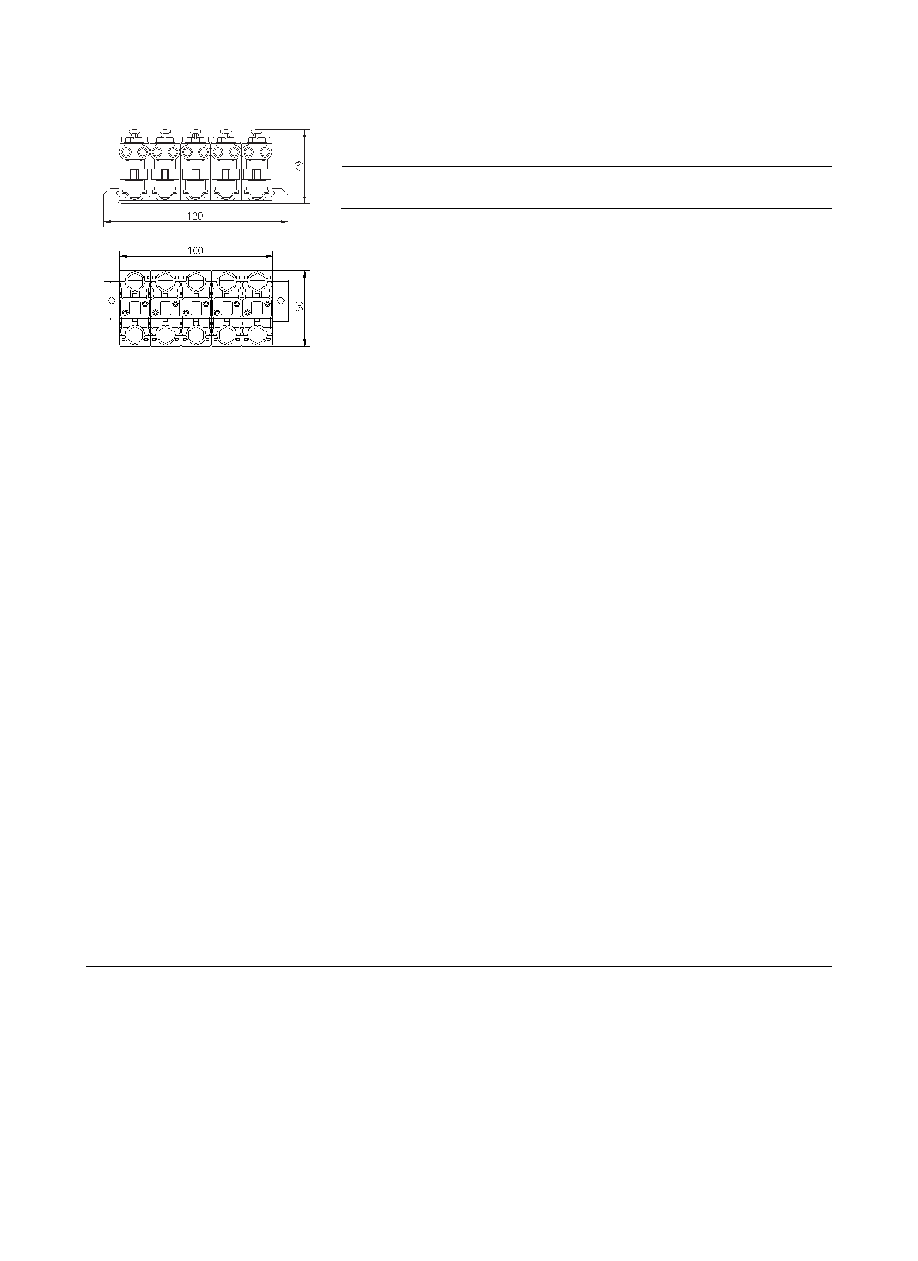

Heights are maximum values
Description
Plug-in module
Order number
configuration
test access type
VX-DR-05-P
Continuity
Pins
107006-000
VX-DR-05-PG04
230 V GDT
Pins
029767-000
For other configurations, please consult your local Tyco Electronics sales engineer.
