FOD3180 Fairchild代理8-PIN DIP 2A OUTPUT CURRENT HIGH SPEED IGBT FOD3180全新現貨 深圳市亨力拓電子有限公司貨源電話：0755-83293082 阮先生
FOD3180 Fairchild代理8-PIN DIP 2A OUTPUT CURRENT HIGH SPEED IGBT大批量到貨
FOD3180 Fairchild代理8-PIN DIP 2A OUTPUT CURRENT HIGH SPEED IGBT
Features
■ Guaranteed operating temperature range of -40°C to
+100°C
■ 2A minimum peak output current
■ High speed response: 200ns max propagation delay
over temperature range
■ 250kHz maximum switching speed
■ 30ns typ pulse width distortion
■ Wide VCC operating range: 10V to 20V
■ 5000Vrms, 1 minute isolation
■ Under voltage lockout protection (UVLO) with
hysteresis
■ Minimum creepage distance of 7.0mm
■ Minimum clearance distance of 7.0mm
■ C-UL, UL and VDE* approved
■ RDS(ON) of 1.5? (typ.) offers lower power dissipation
■ 15kV/μs minimum common mode rejection
Description

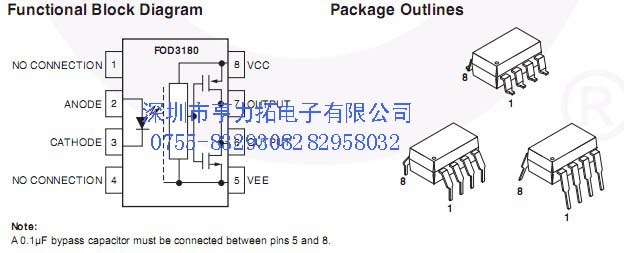

The FOD3180 is a 2A Output Current, High Speed
MOSFET Gate Drive Optocoupler. It consists of a
aluminium gallium arsenide (AlGaAs) light emitting diode
optICally coupLED to a CMOS detector with PMOS and
NMOS output power transistors integrated circuit power
stage. It is ideally suited for high frequency driving of
power MOSFETs used in Plasma Display Panels
(PDPs), motor control inverter applications and high
performance DC/DC converters.
The device is packaged in an 8-pin dual in-line housing
compatible with 260°C reflow processes for lead free
solder compliance.
Applications
■ Plasma Display Panel
■ High performance DC/DC convertor
■ High performance switch mode power supply
■ High performance uninterruptible power supply
■ Isolated Power MOSFET gate drive
*Requires ‘V’ ordering option
